Tower cranes that stop before they touch
DTC 3300 Pro · Anti-Collision
01 / DTC 3300 PRO · TOWER CRANE ACD
Anti-Collision with integrated SLI for
DTC 3300 Pro is the Anti-Collision Device with integrated Safe Load Indicator for multi-crane tower-crane sites. Master/slave radio between cranes; required day-1 of cluster erection.

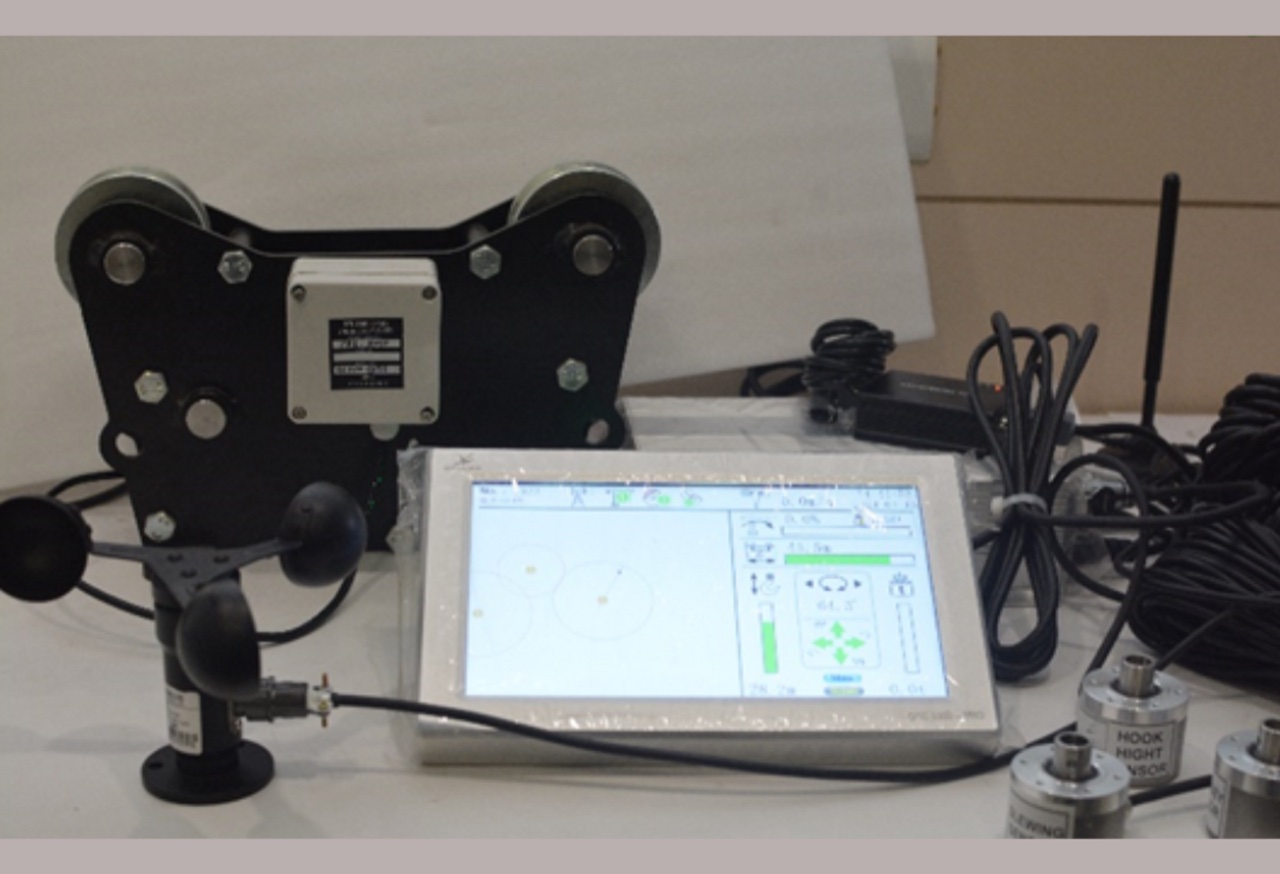

ACTUAL DEVICE02 / FEATURES
- 01Anti-collision logic with motion-cut on intrusion into another crane's swing arc.
- 02Integrated Safe Load Indicator — single device, single calibration.
- 03Master-slave radio between cranes on the cluster.
- 04230V AC mains operation for tower-crane installations.
- 05IP65 sealed enclosure; designed for unmanned, exposed tower-top mounting.
- 06Configurable zones for tower-to-tower and tower-to-structure exclusion.
WATCH IT IN ACTION
How the DTC 3300 Pro anti-collision system tracks every jib, trolley and hook on a shared site, slows the crane and stops it in time, and shows the whole site live on your phone.
More product videos →03 / APPLICATIONS
FITSTower Cranes (multi-crane sites)
04 / SPEC SHEETEXPANDCOLLAPSE
DTC 3300 PRO · SPEC SHEETREV.01
- Power
- 230V AC
- Ingress protection
- IP65
- Operating temperature
- -20°C to +65°C
- Topology
- Master / slave radio between cranes
- Outputs
- Motion-cut relays + alarm
- Display
- Operator console + status LEDs
Dynamic-manufactured. Designed to industry safety practices and 21+ years of field-validated reliability. Currently no third-party Indian (IS/BIS) or CE certification on this device — certification programme in progress.
05 / GET A QUOTE
Need DTC 3300 Pro on site?
Tell us the equipment.
We quote DTC 3300 Pro units, supply, install, calibrate, and service across India. Send us your crane model, capacity, and project location and we'll come back with options.
