10 / DC 1005 · CRAWLER SLI
Crawler-crane SLI with
DC 1005 is the Safe Load Indicator for crawler and lattice-boom cranes. Real-time load-moment computation, motion-cut on overload, IP65 across the kit.

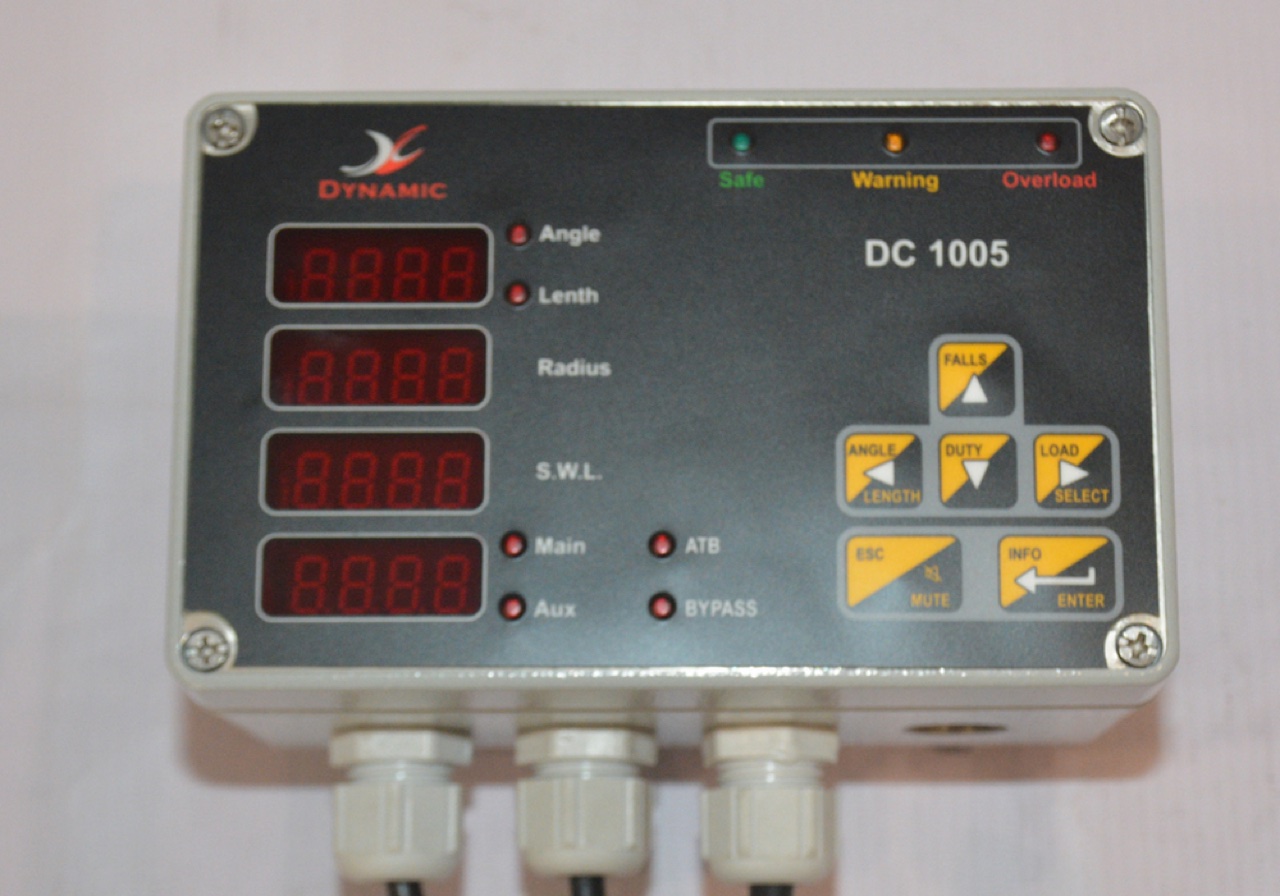

ACTUAL DEVICE02 / FEATURES
- 01Real-time load-moment computation for lattice-boom geometry.
- 02Motion-cut on overload — disables hoist-up and boom-down at limit.
- 0312-24 VDC, IP65, MIL-grade connectors throughout.
- 04Operator display with load percentage and boom state.
- 05Calibratable in the field for OEM-specific load tables.
03 / APPLICATIONS
FITSCrawler / Lattice-boom Cranes
04 / SPEC SHEETEXPANDCOLLAPSE
DC 1005 · SPEC SHEETREV.01
- Power
- 12-24 VDC
- Ingress protection
- IP65
- Operating temperature
- -20°C to +65°C
- Outputs
- Motion-cut relays
- Inputs
- Hook load + boom angle + boom length (per OEM)
Dynamic-manufactured. Designed to industry safety practices and 21+ years of field-validated reliability. Currently no third-party Indian (IS/BIS) or CE certification on this device — certification programme in progress.
05 / GET A QUOTE
Need DC 1005 on site?
Tell us the equipment.
We quote DC 1005 units, supply, install, calibrate, and service across India. Send us your crane model, capacity, and project location and we'll come back with options.
